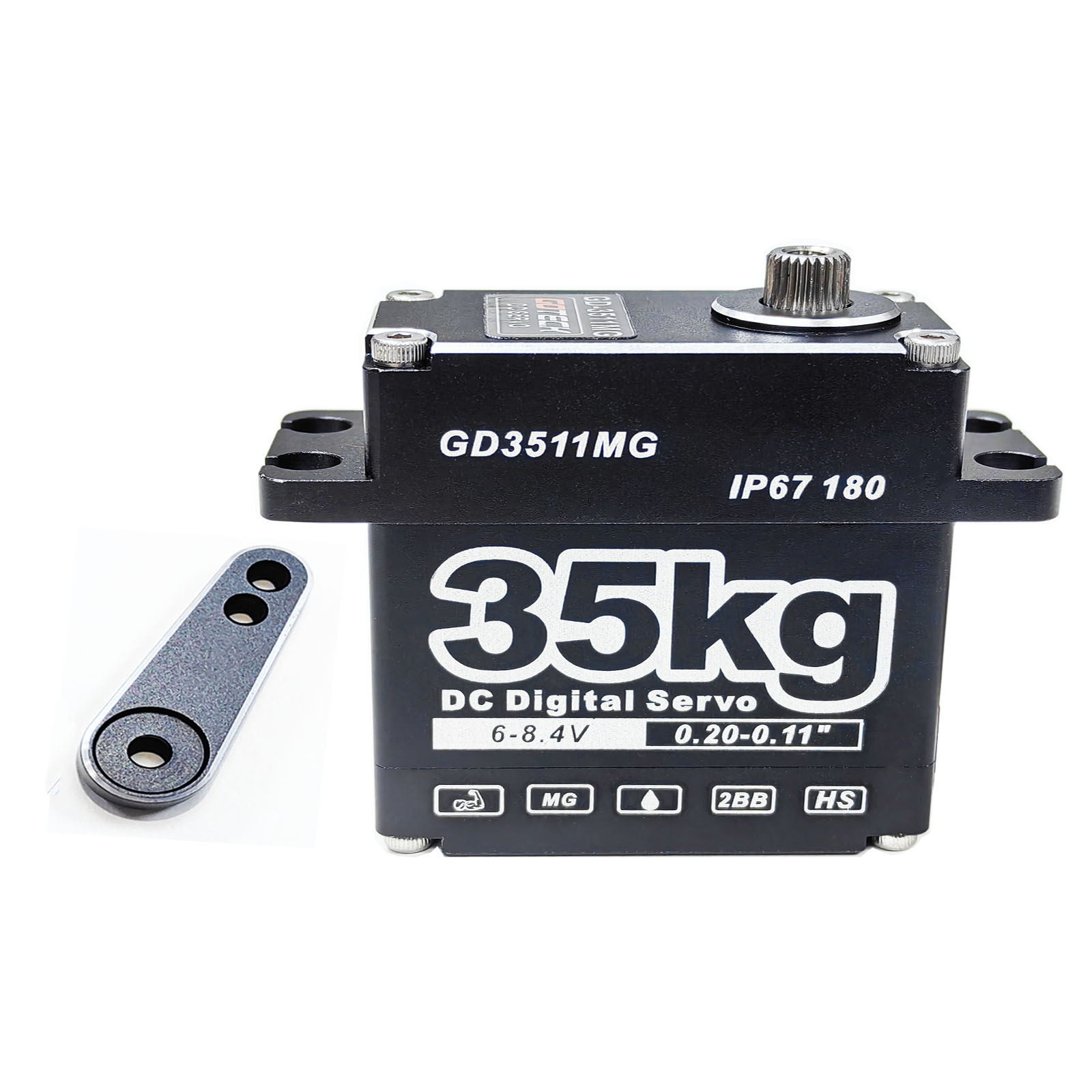

GOTECK 35KG Digital Servo,Large Torque 8.4V Full Metal Gear IP67 Waterproof Steering Servo

1、GOTECK Servo GD3511MG with stainless steel gear . Accuracy and service life has been greatly increased . Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.

2、GOTECK Servo GD3511MG Stall Torque (6V): 28kg/cm; Stall Torque (8.4V): 35 kg/cm,Speed : 0.20 sec/60°(6V) / 0.11 sec/60°(8.4V) .

3、GOTECK Servo GD3511MG Compatible with 1/6 1/8 1/10 and 1/12 scale crawler buggy truck rc car, mechanical arm, quadcopter drone and other remote control equipment.

4、GOTECK Servo GD3511MG Dual ball bearings. Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) .

5、Package includes : 1 X GD3511MG 30KG High Speed Stainless Steel Gear Digital Servo ; 1 X 25T Adjustable Metal Servo Arm ; 1 X Accessories

GOTECK GD3511MG Servo is a Digital Servo,which Feature is Super Speed and High Power!It Delivers Incredible Power and Can Be Used for RC Helicopters,Airplanes,Cars,and Trucks When a Standard Servo Is Required!

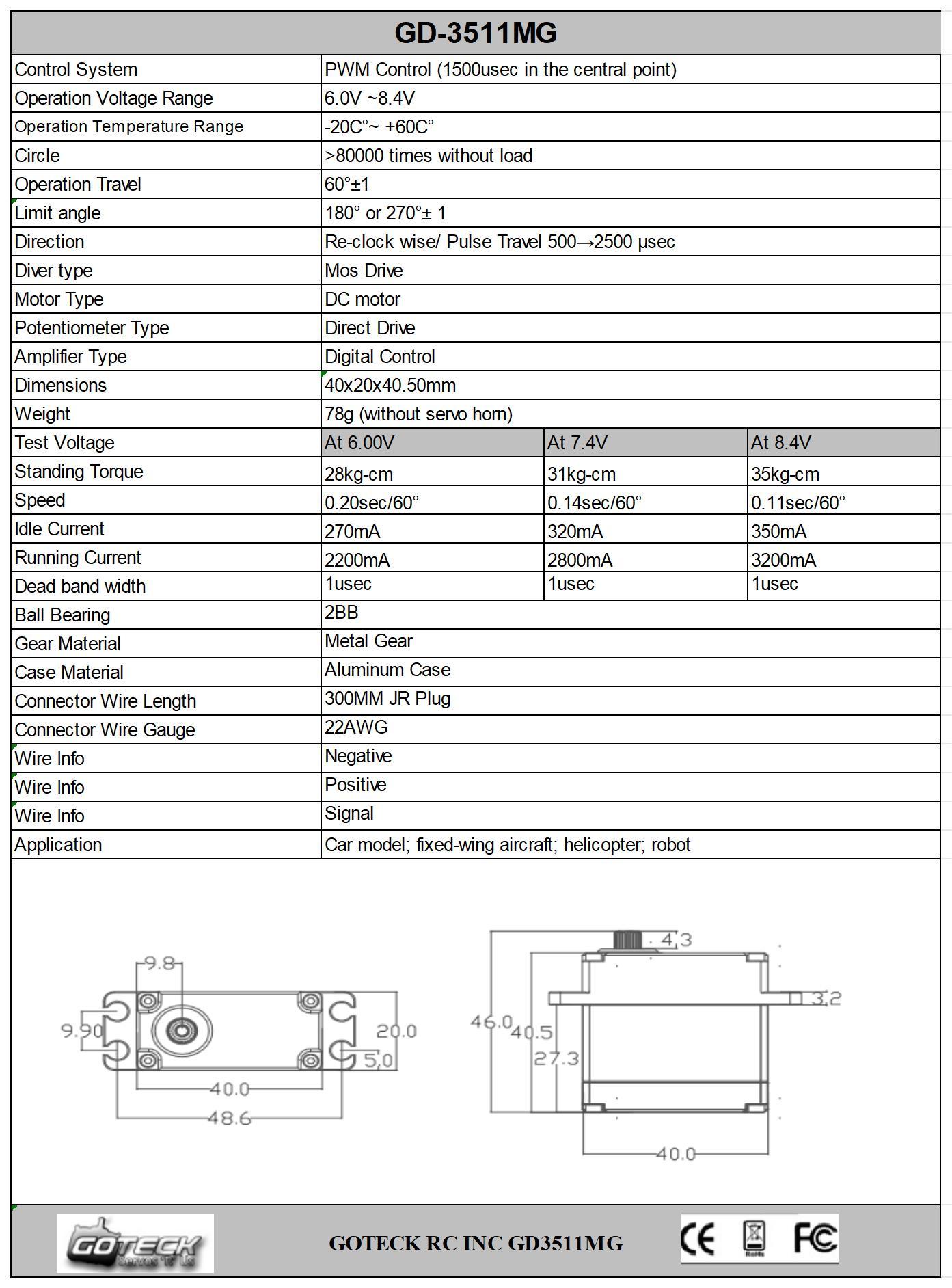

Description

Used For: 1/6 1/8 1/10 1/12 scale Crawler / Buggy / Truck

Waterproof performance:IP67

Stall Torque (6V): 28 kg/cm

Stall Torque (8.4V): 35 kg/cm

Speed : 0.20 sec/60°(6V) / 0.11 sec/60°(8.4V)

Operating Voltage: 6 ~ 8.4 DC Volts

Dead brand: 1μs

Weight: 78 g

Motor Type: DC Motor

Gear Type: Stainless Steel

Working frequence: 50-333Hz

Operating travel:180°or 270° (PWM 500-2500μs)

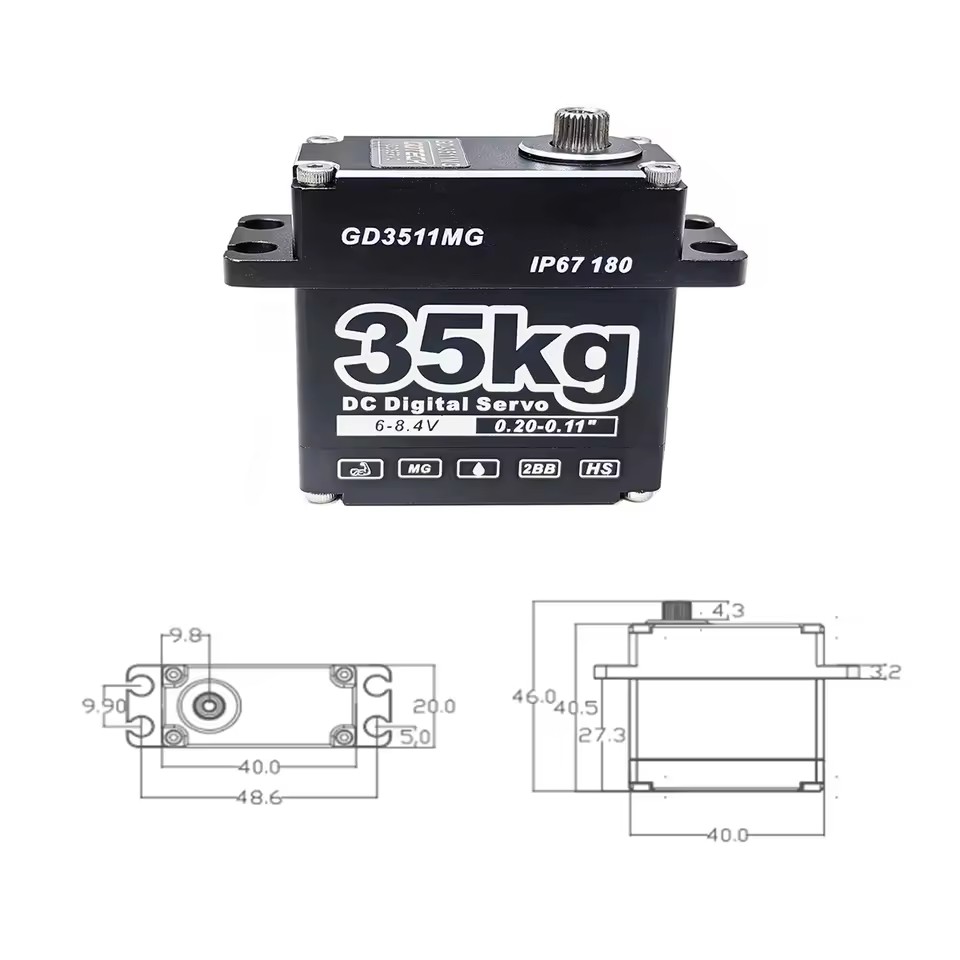

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)

Features:

– High performance digital standard servo

– High-precision metal gears with hard anodizing

– CNC Full Aluminum Case

– Dual ball bearings

Control Method: PWM

Pulse Width: 500~2500 μsec

Bearing Type: Ball Bearing x 2

Temperature: -20℃~60℃

Connector wire length: 280±5mm

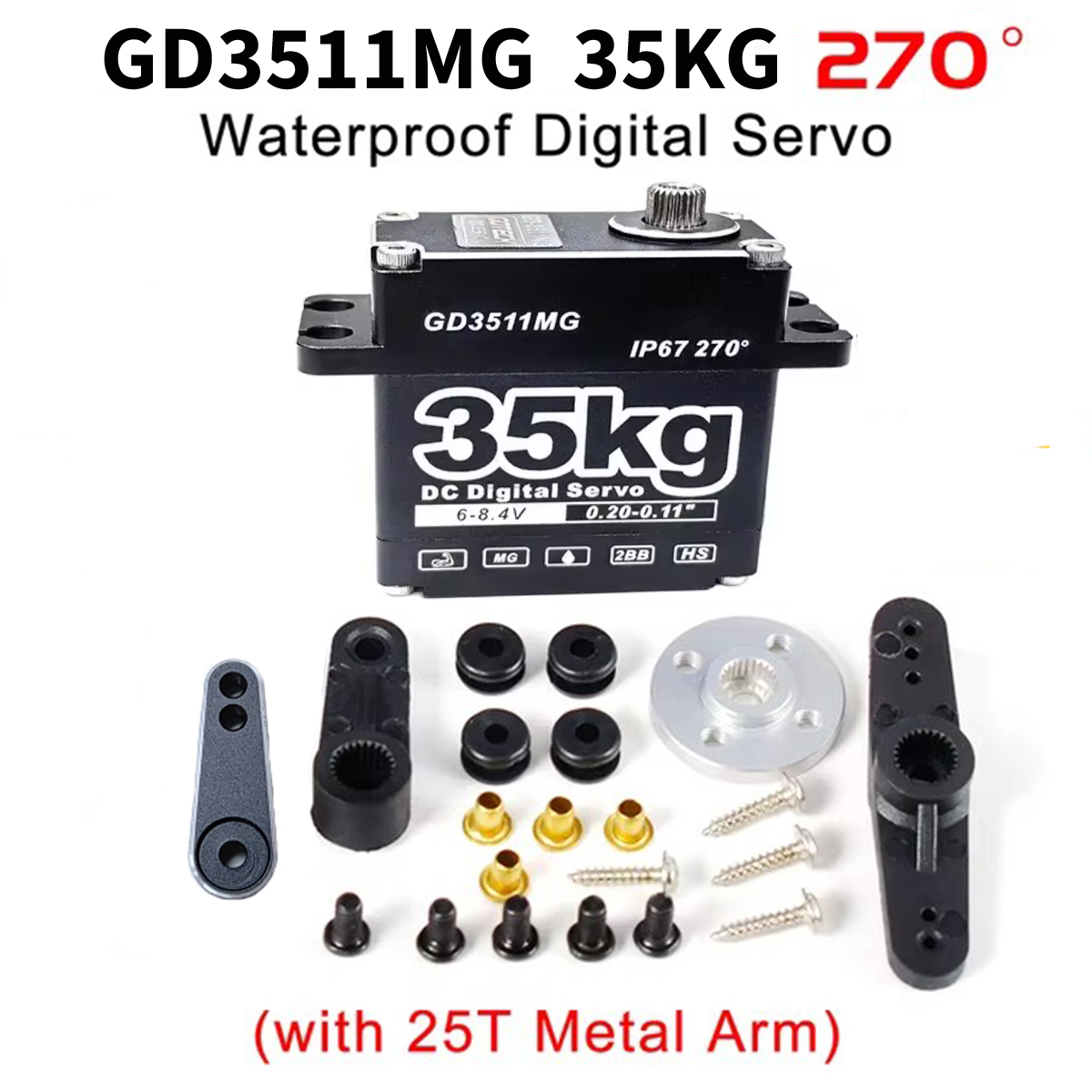

Package Includes :

1 X GD3511MG 35KG Stainless Steel Gear Digital Servo

1 X 25T Adjustable Metal Servo Arm

1 X Accessories
