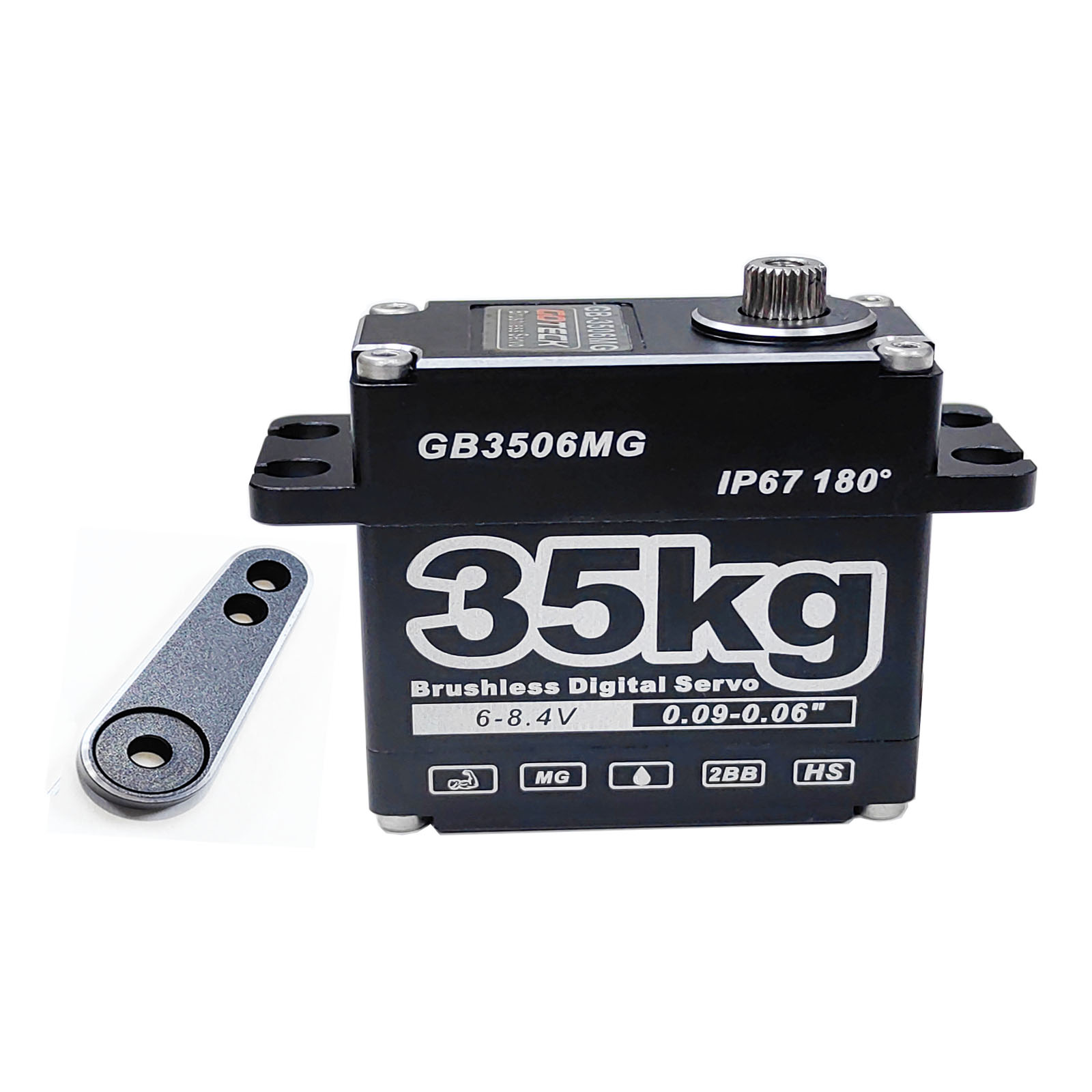

GOTECK 35KG Brushless Digital Servo Large Torque 8.4V Full Metal Gear IP67 Waterproof Steering Servo

1、GOTECK Servo GB3506MG with stainless steel gear . Accuracy and service life has been greatly increased . Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.

2、GOTECK Servo GB3506MG Stall Torque (6V): 30kg/cm; Stall Torque (8.4V): 35 kg/cm,Speed : 0.09 sec/60°(6V) / 0.06 sec/60°(8.4V) .

3、GOTECK Servo GB3506MG Compatible with 1/6 1/8 1/10 and 1/12 scale crawler buggy truck rc car, mechanical arm, quadcopter drone and other remote control equipment.

4、GOTECK Servo GB3506MG Dual ball bearings. Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) .

5、Package includes : 1 X GB3506MG 35KG High Speed Stainless Steel Gear Brushless Digital Servo(180 Degree) ; 1 X 25T Adjustable Metal Servo Arm ; 1 X Accessories

GOTECK GB3506MG Servo is a Brushless Digital Servo,which Feature is Super Speed and High Power!It Delivers Incredible Power and Can Be Used for RC Helicopters,Airplanes,Cars,and Trucks When a Standard Servo Is Required!

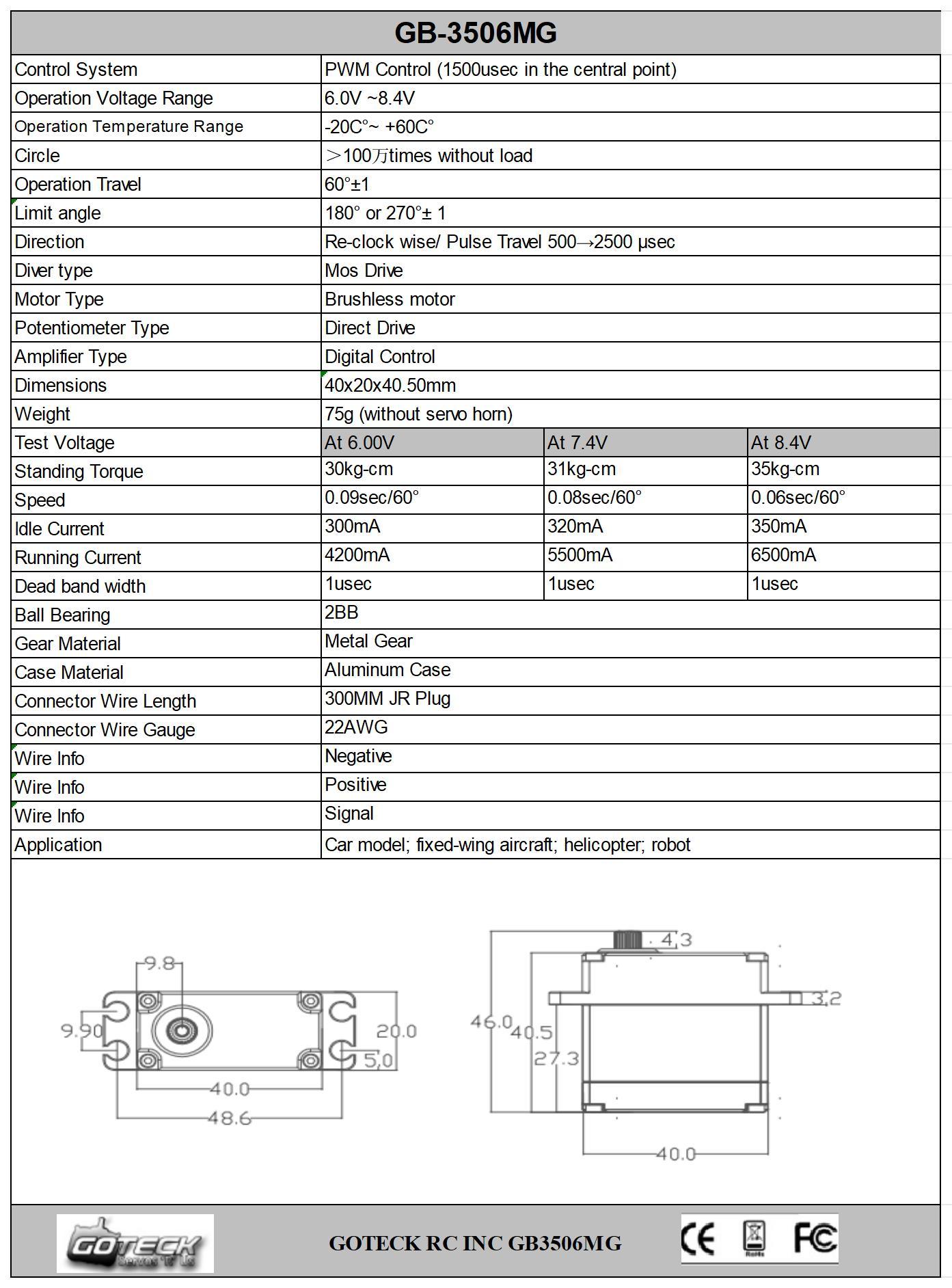

Description

Used For: 1/6 1/8 1/10 1/12 scale Crawler / Buggy / Truck

Waterproof performance:IP67

Stall Torque (6V): 30 kg/cm

Stall Torque (8.4V): 35 kg/cm

Speed : 0.09 sec/60°(6V) / 0.06 sec/60°(8.4V)

Operating Voltage: 6 ~ 8.4 DC Volts

Dead brand: 1μs

Weight: 75 g

Motor Type: Brushless Motor

Gear Type: Stainless Steel

Working frequence: 50-333Hz

Operating travel:180°or 270° (PWM 500-2500μs)

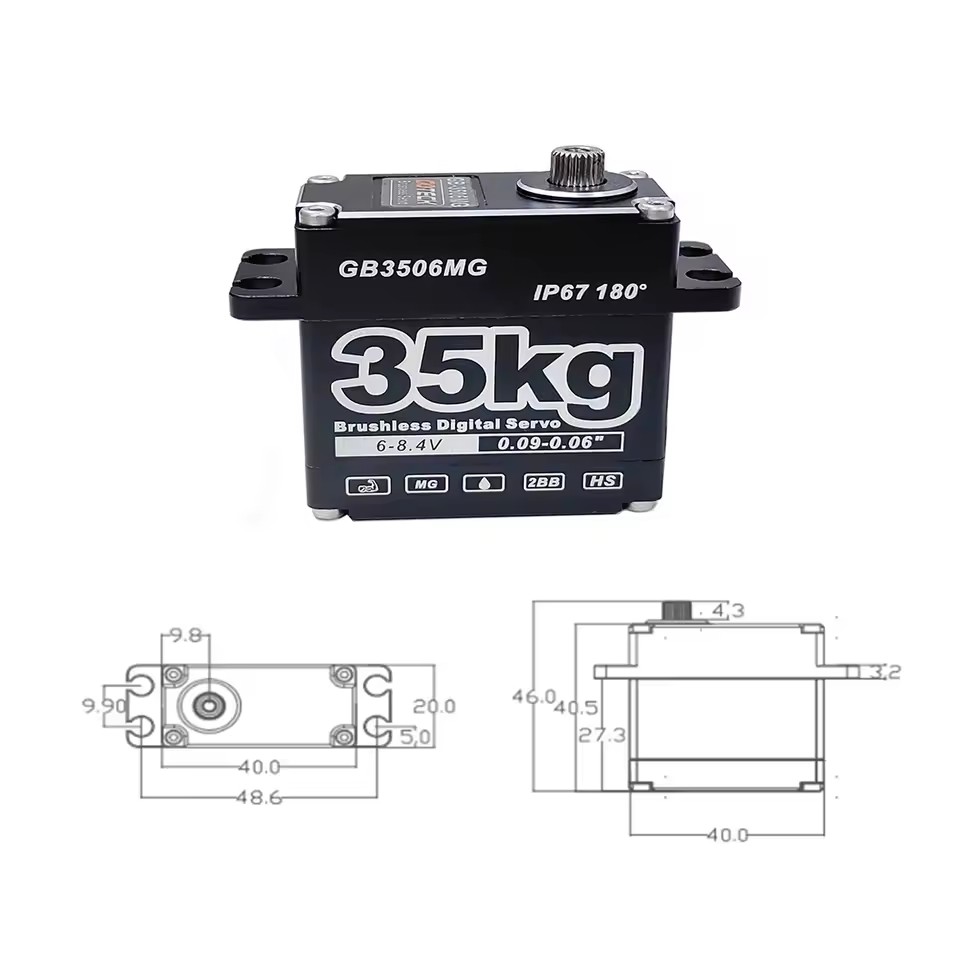

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)

Features:

– High performance Brushless digital standard servo

– High-precision metal gears with hard anodizing

– CNC Full Aluminum Case

– Dual ball bearings

Control Method: PWM

Pulse Width: 500~2500 μsec

Bearing Type: Ball Bearing x 2

Temperature: -20℃~60℃

Connector wire length: 280±5mm

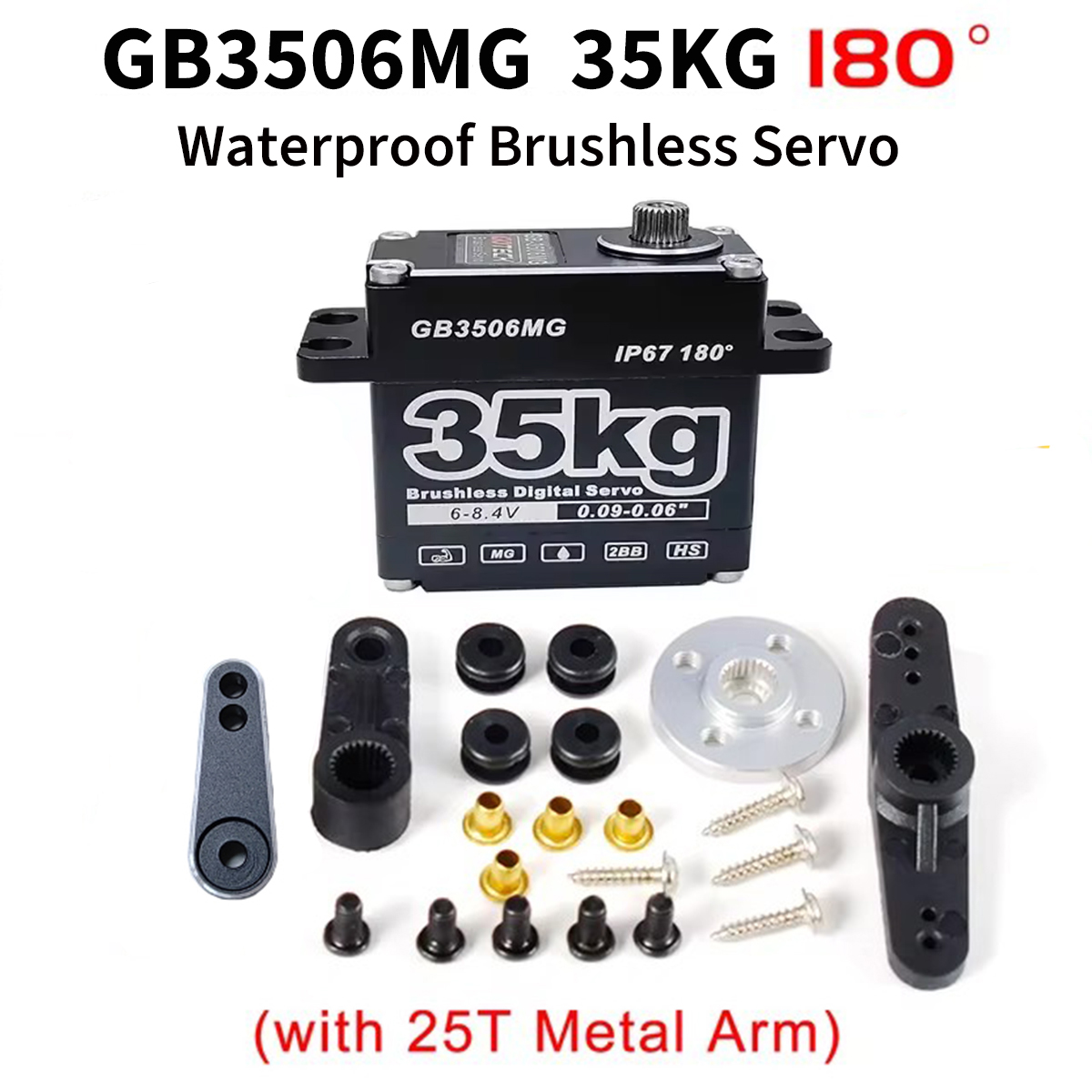

Package Includes :

1 X GB3506MG 35KG Brushless Digital Servo

1 X 25T Adjustable Metal Servo Arm

1 X Accessories
