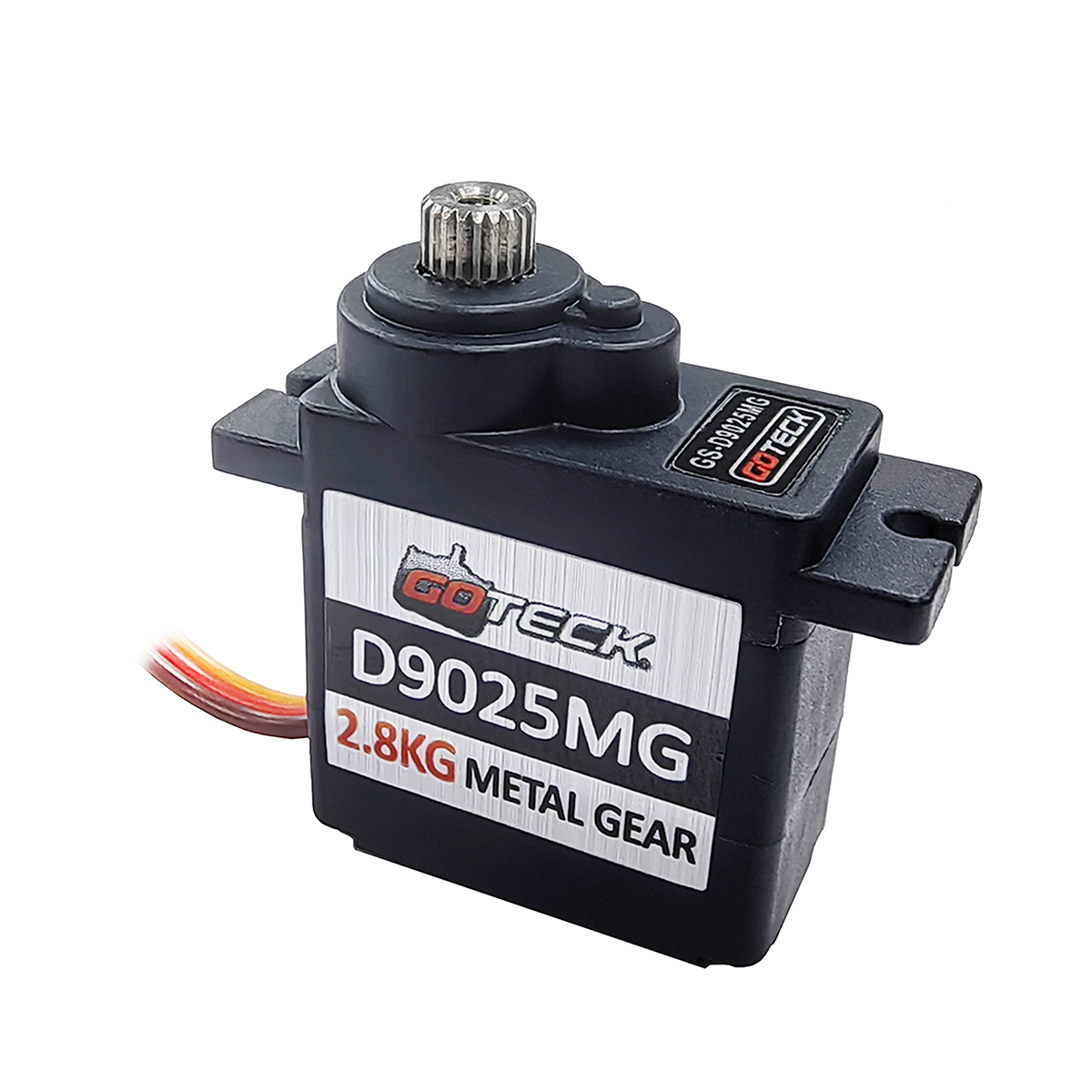

GOTECK 2PCS 9G D9025MG Mini Servo

GOTECK 9G Micro Servo high-precision Full Metal Gear (more durable and prevent tooth sweeping) with Hard Anodizing, combined with Ball Bearings, has a longer service life.

9G Digital Servo Mini with Extra Large Torque can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.

GOTECK 9G Servo will undergo current reduction and power outage treatment when the locked rotor time and current exceed the preset values, preventing blockage and burning.

9G Mini servo is most suitable for micro control fields such as aircraft models, drones, toys, remote control vehicles,intelligent switches, etc.

In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees.

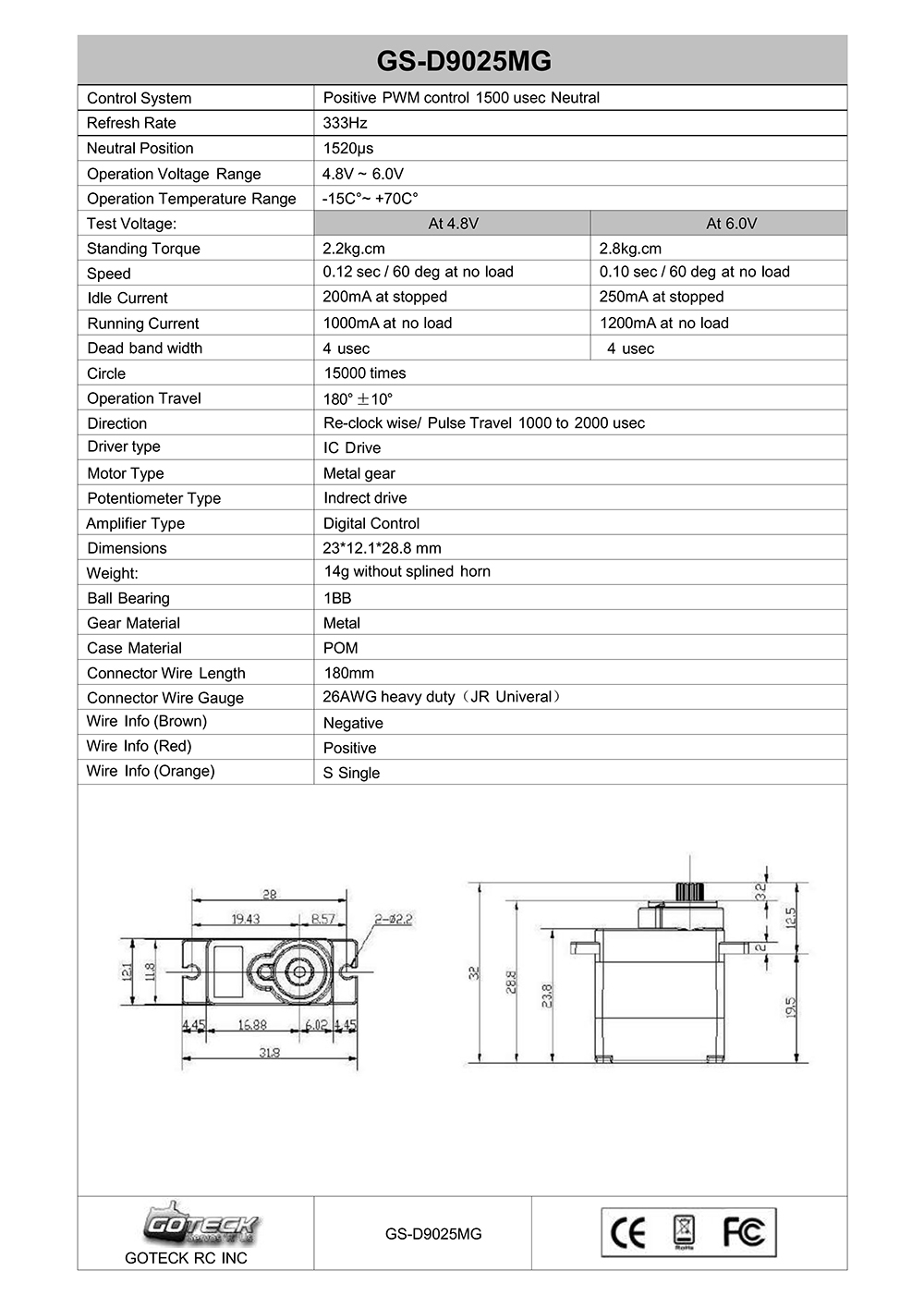

Specifications:

D9025MG

Operating temperature: -20℃~+60℃

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Torque: 2.2kg.cm at 4.8V; 2.8kg.cm at 6V;

No load speed: 0.12S/60° at 4.8V; 0.10S/60° at 6V;

Corner angle: 180°

Product weight: 14g;

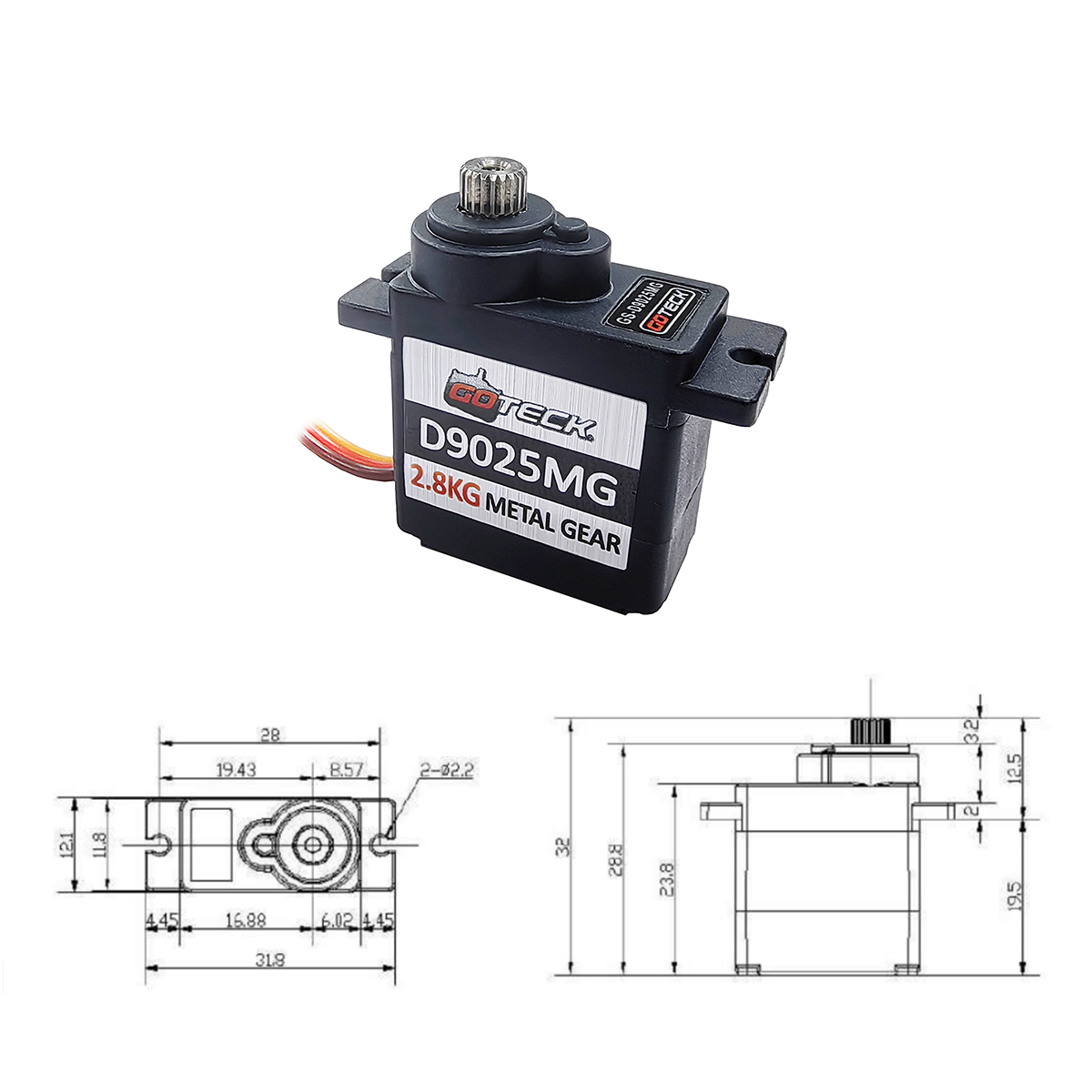

Boundary dimension: 23*12.1*28.8mm;

Motor type: DC motor;

Gear type: Metal gear.

Package included:

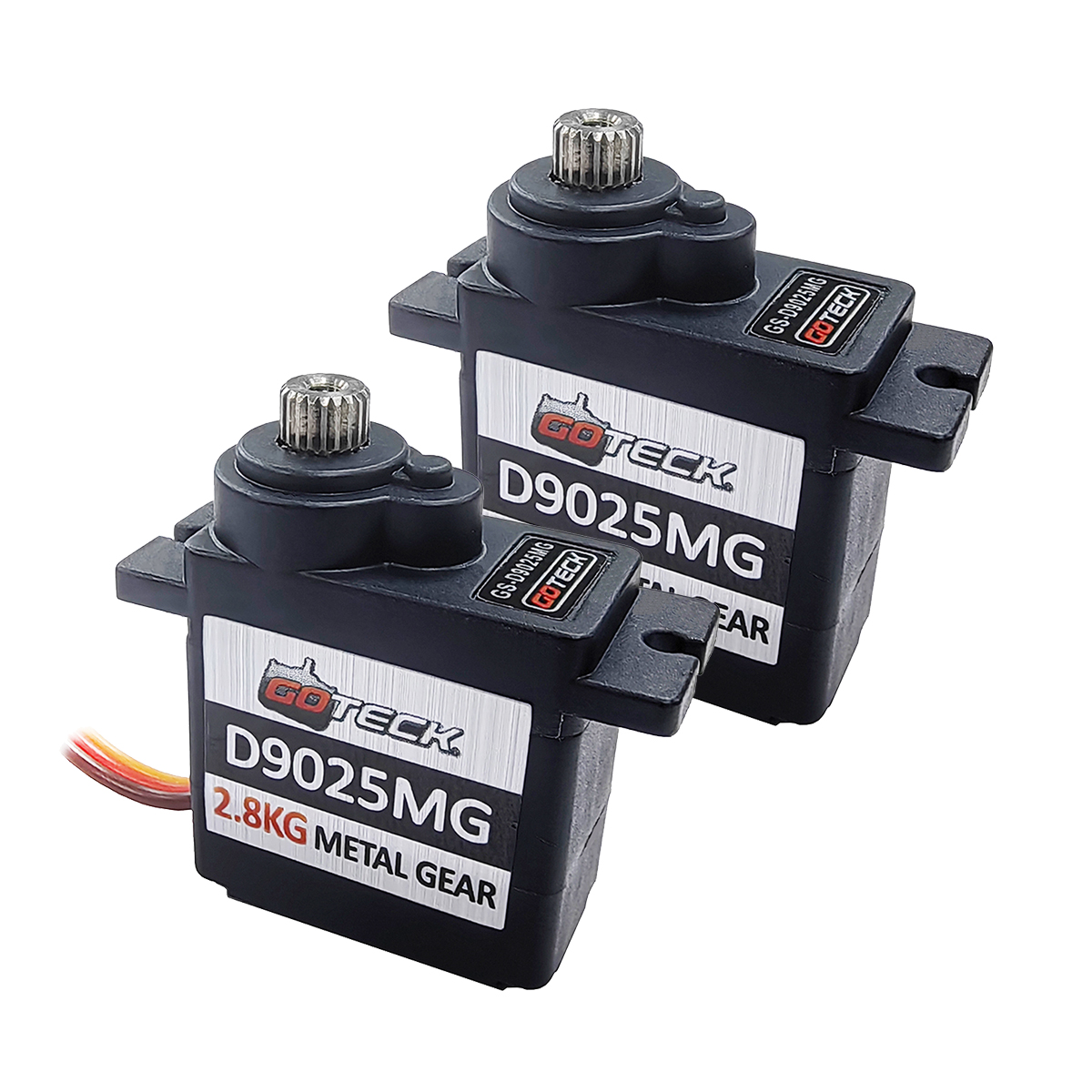

2 * 9G Full Metal Gear Digital Servo

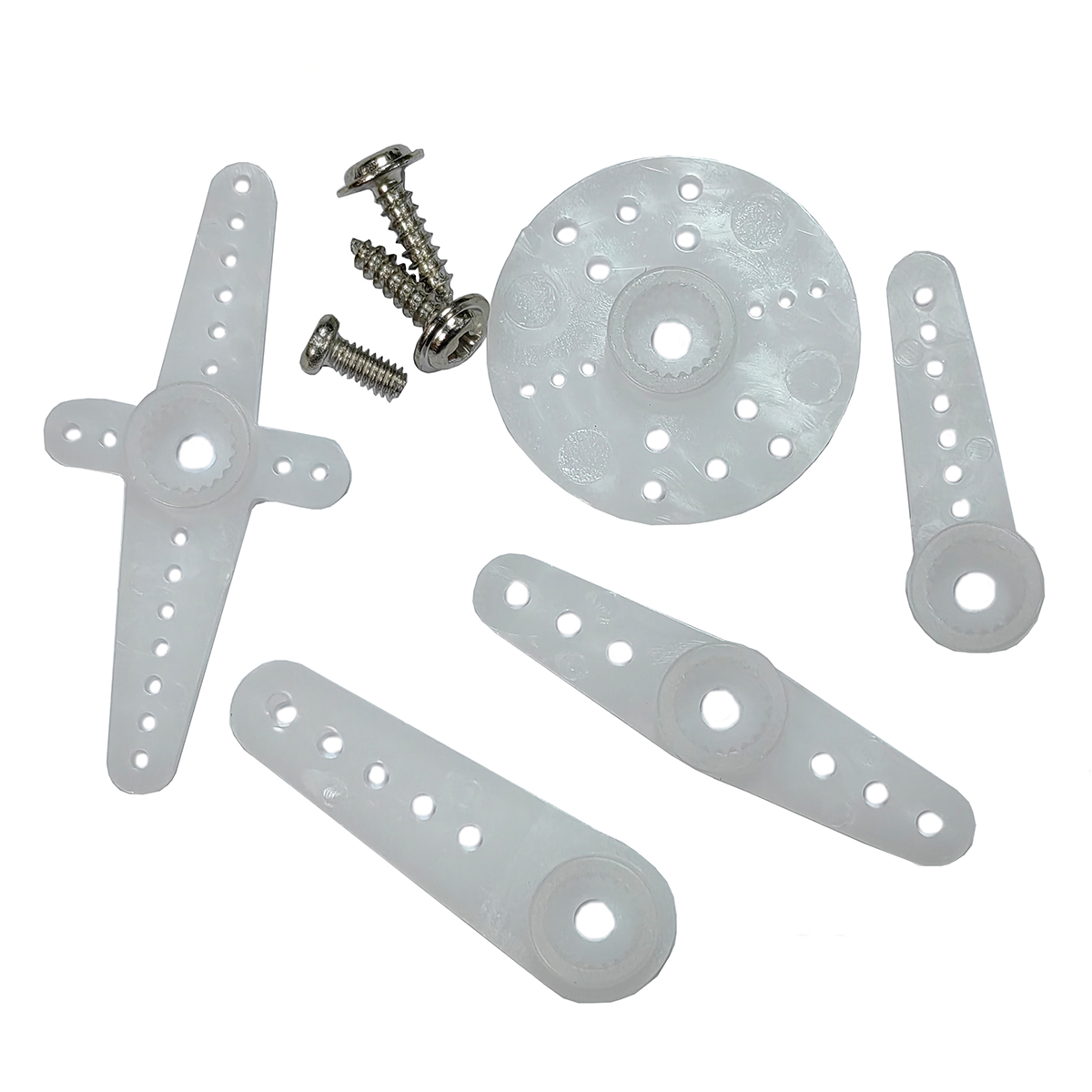

2 * Servo Accessories
