FPV Drone Frame kit,Carbon Fiber 5 Inch Support

5 inch FPV frame kit, with excellent compatibility, it is compatible with D-J-I O3 Air Unit, Caddx Vista, Runcam link Wasp, Avatar HD, etc.

Deadcat design, no propellers in the view for a more flexible flight experience. More suitable for freestyle with high maneuverability.

It is made of high-strength T700 carbon, 6mm arms, which ensure your FPV drone frames kit light weight and strength.

New CNC 7075 aluminum alloy camera mounting plates for enhanced protection, makes the overall structure very strong, stable and safe.

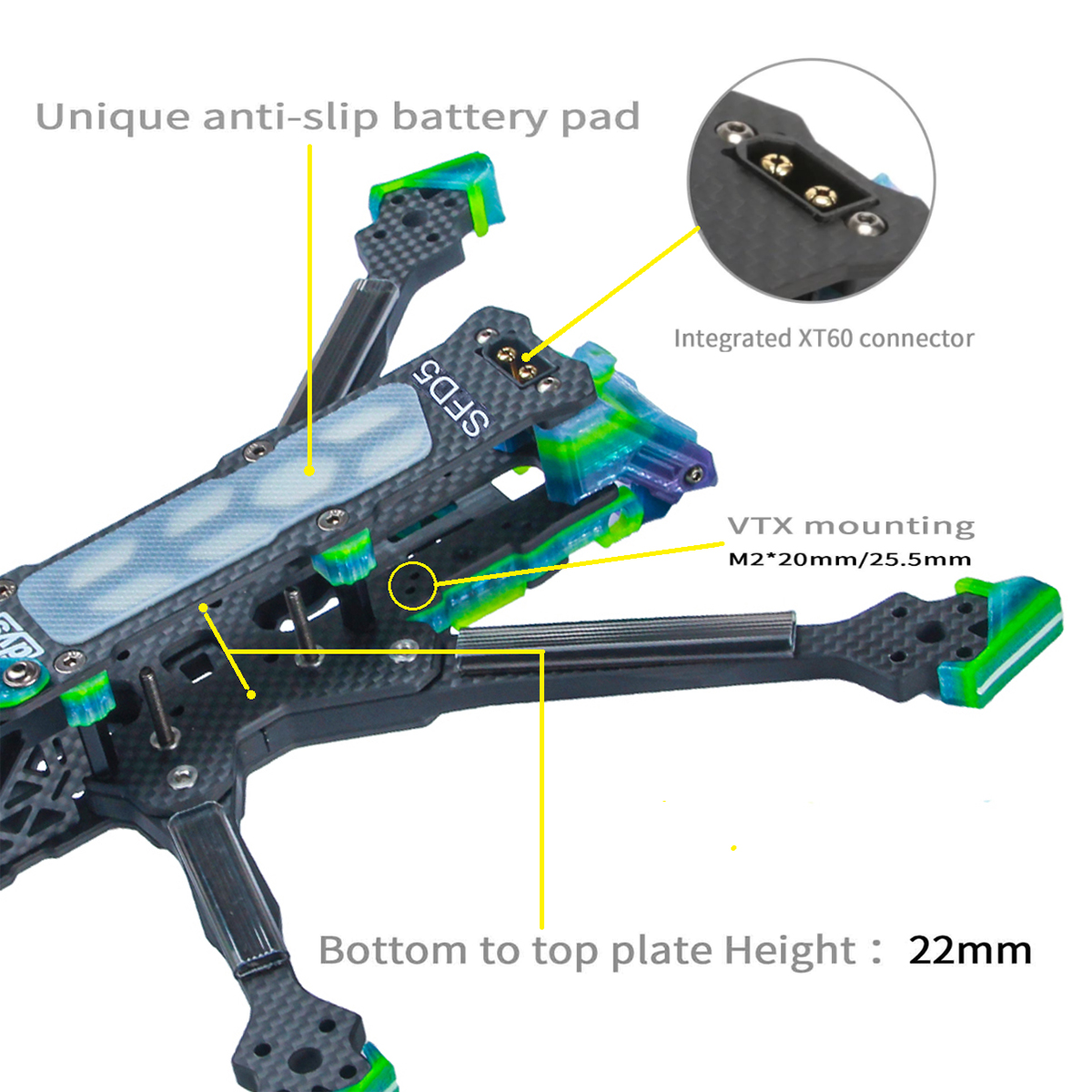

Unique anti-slip battery pad, cool looking.

Notice: Comes unassembled. Need build by buyers.

Features:

High-end T700 carbon fiber

Tight structure design minimizes resonance

The new CNC aluminum camera plates effectively protect the camera

The silicone shock absorbers for the DJI O3 AU eliminate jello

Integrated XT60 connector for safety and reliability

High-quality TPU parts

Innovative anti-slip battery pads

New motor wire protection tubes

Compatible with both 19/20mm cameras

Equipped with all accessories needed for analog and HD builds

12.9-grade strength hardware with Loctite thread locker pre-applied

High electronics compatibility

Specification:

Brand: DYS

Model: SFX5 / SFD5

Color: Tropical Mix

Version: SFX5 ( X Type) / SFD5 ( Deadcat Type)

Arm Thickness: 6mm

Top plate thickness: 2.5mm

Middle plate thickness: 2.5mm

Bottom plate thickness: 2.5mm

Keystone thickness:5mm

Side plate thickness:2mm

CNC Side plate thickness:5mm

Material: T700 carbon plate

FPV cam spacing: 19mm/20mm

Version  SFX5

Wheelbase  225mm

Weight  177.4g(with TPU parts)

Total Dimensions  177x140mm

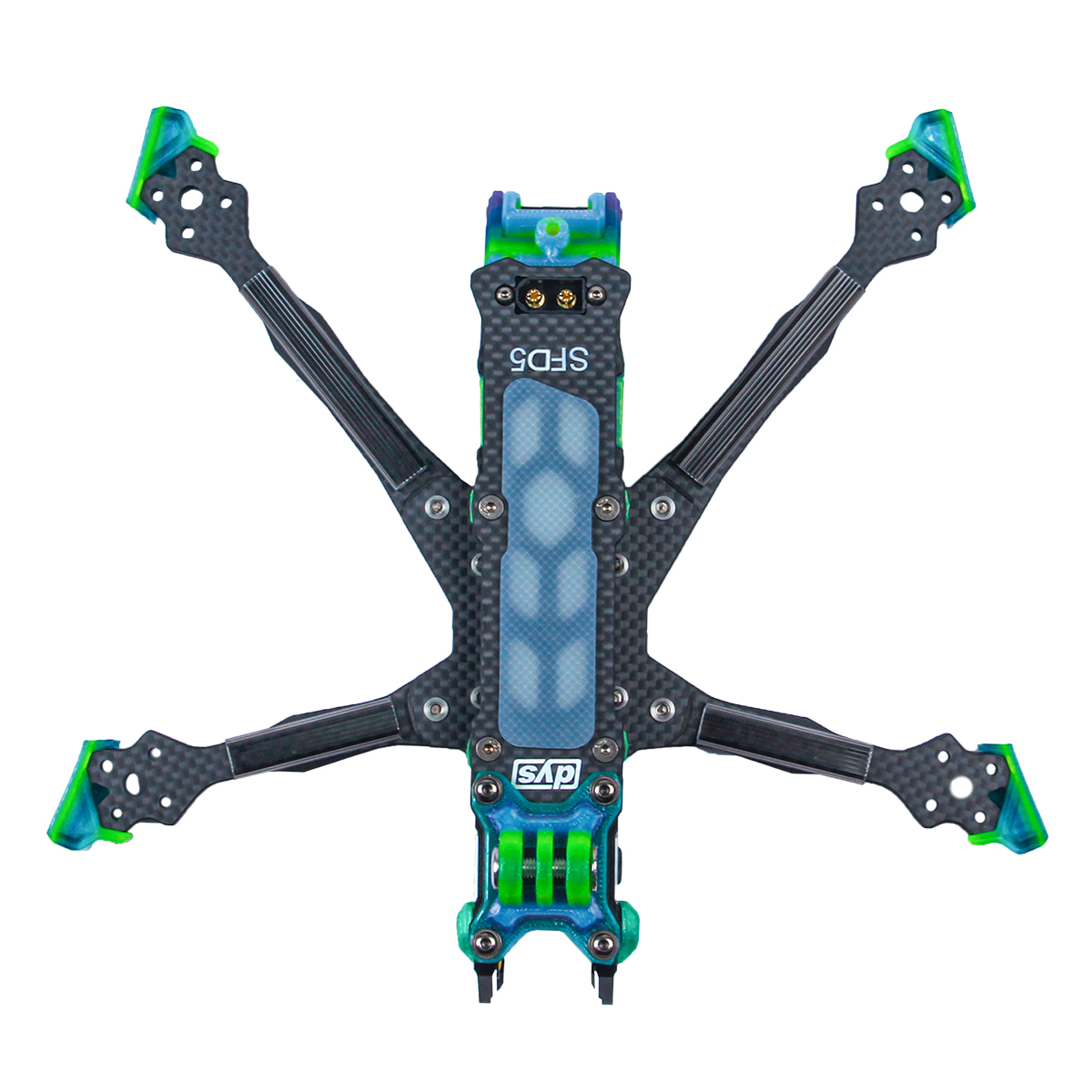

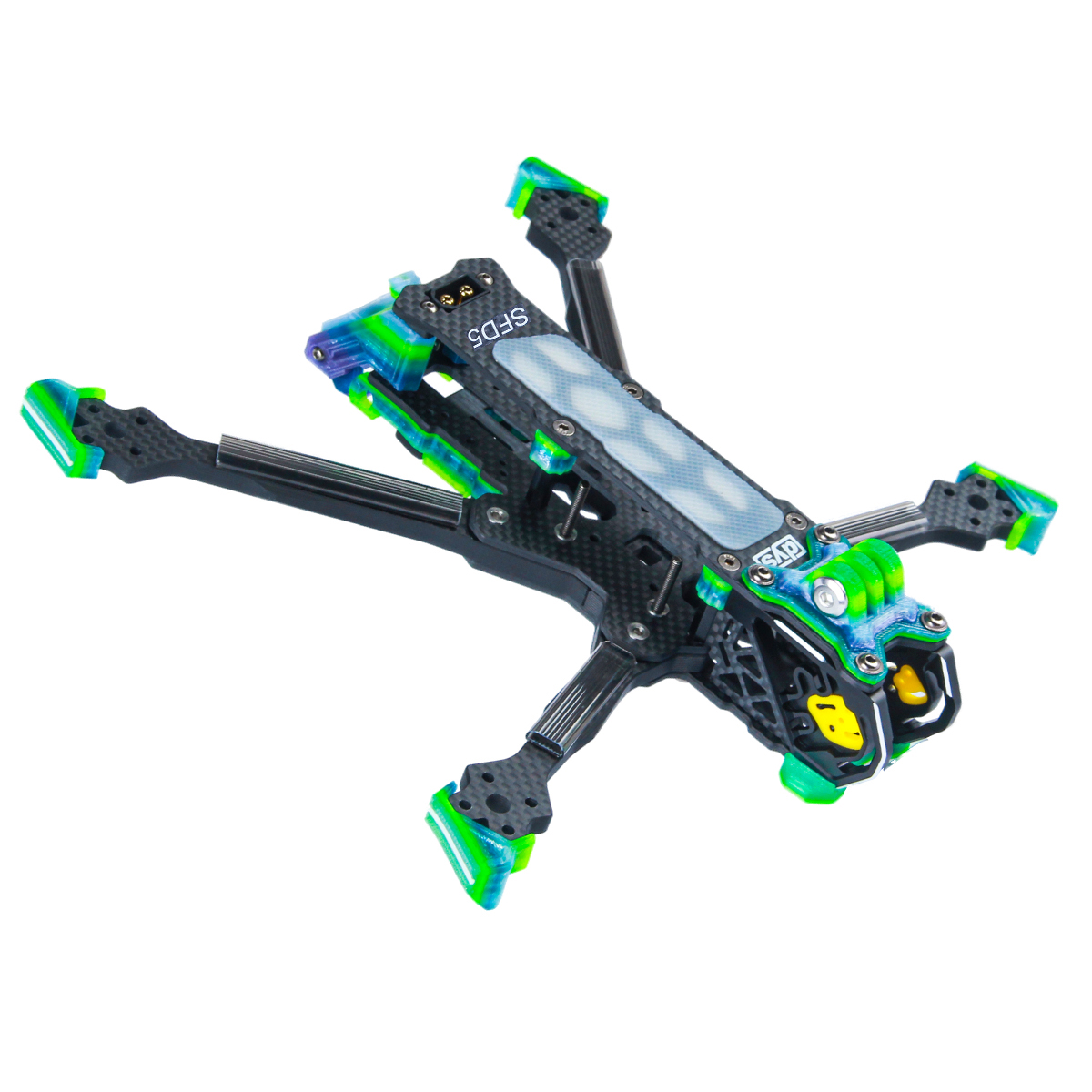

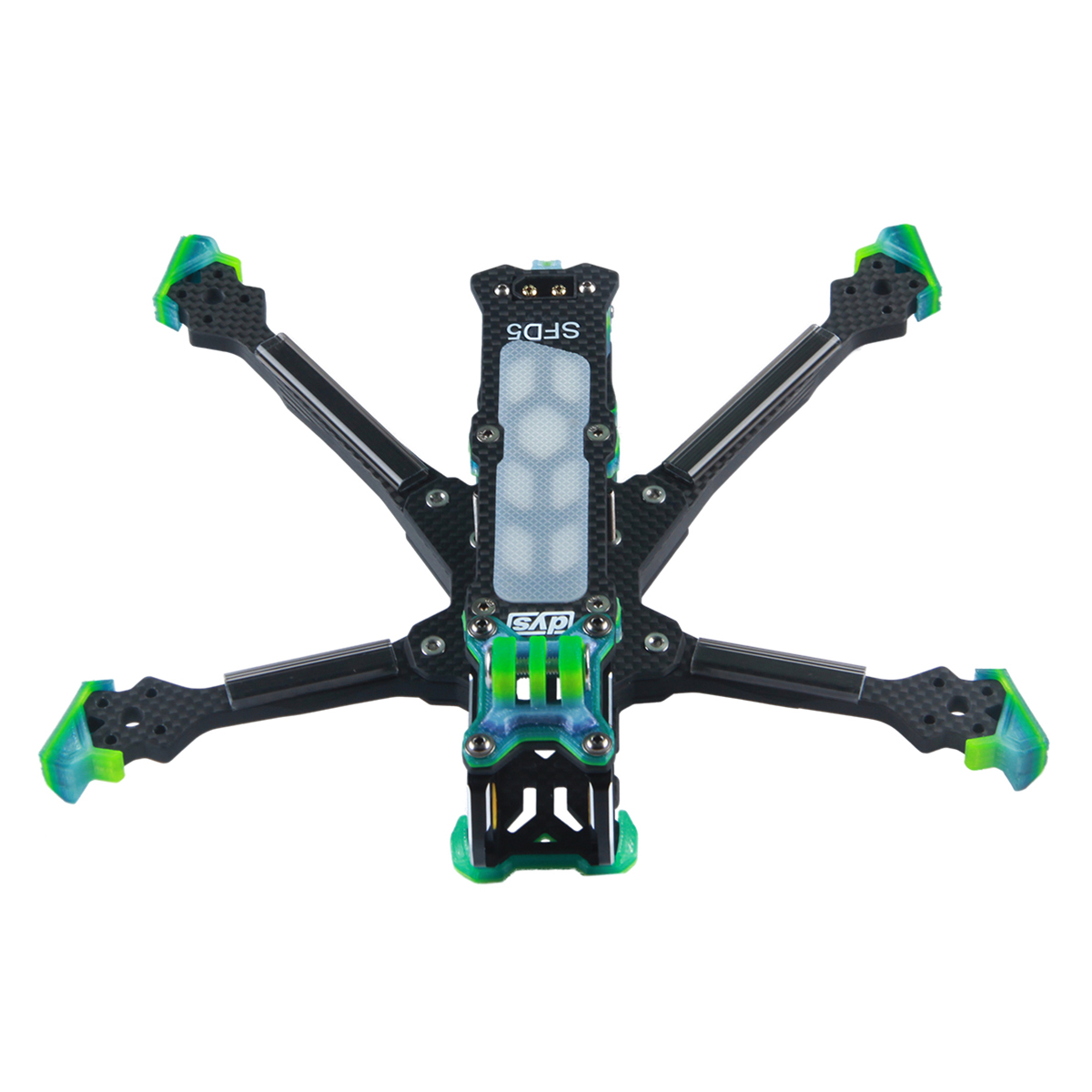

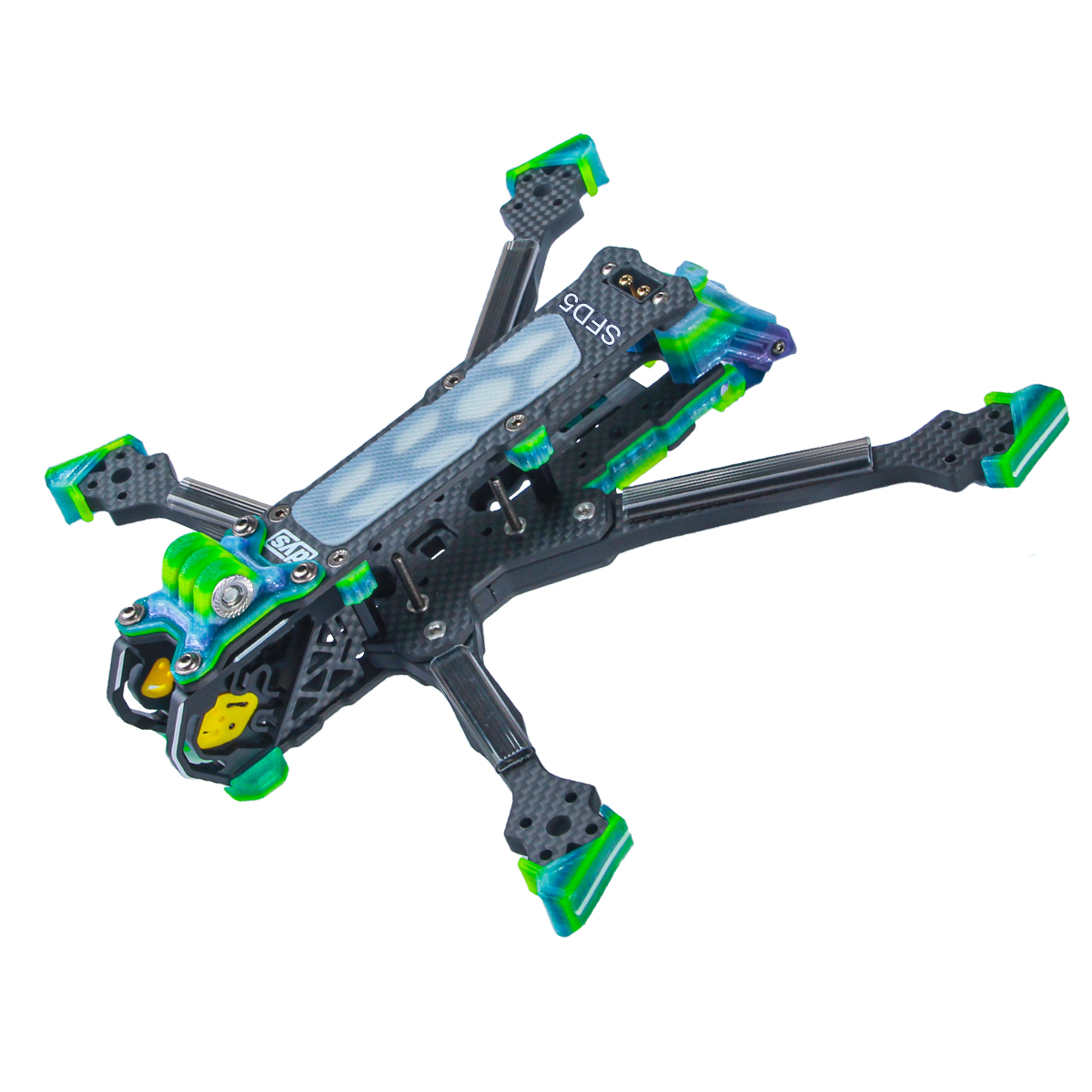

Version  SFD5

Wheelbase  225mm

Weight  186.4g(with TPU parts)

Total Dimensions  190x136mm

Propeller size: recommend 5 Inch – 5.1 Inch

Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)

VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)

Recommend Parts: ( NOT Included)

FC & ESC: 30.5×30.5mm

Brushless Motor: DYS SUNFUN V2 2207 1850KV 6S / 2750KV 4S Motor

DYS SUNFUN V2 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor

Propeller: 6 Pairs 5.1Inch 3-Blade 5mm Hole Propeller

VTX & Camera: DJI O3 Air Unit

Lipo Battery: ZOP Power 22.2V 1500mAh 100C 6S LiPo Battery XT60 Plug

Package Included:

1x Frame Kit
