FPV Drone Frame kit,Carbon Fiber 5 Inch Support

Features:
High-end T700 carbon fiber
Tight structure design minimizes resonance
The new CNC aluminum camera plates effectively protect the camera
The silicone shock absorbers for the DJI O3 AU eliminate jello

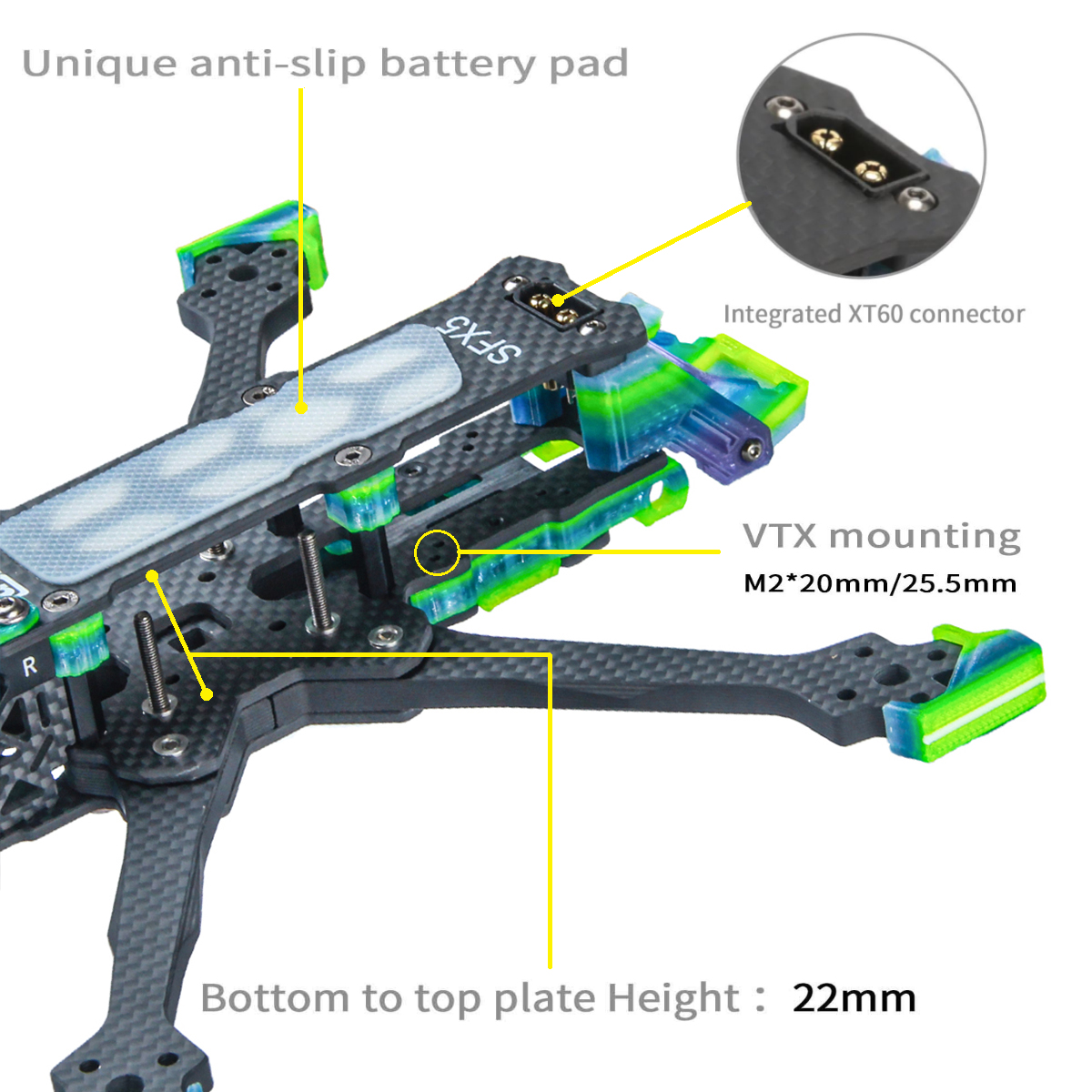

Integrated XT60 connector for safety and reliability
High-quality TPU parts
Innovative anti-slip battery pads
New motor wire protection tubes
Compatible with both 19/20mm cameras
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite thread locker pre-applied
High electronics compatibility

Specification:
Brand: DYS
Model: SFX5 / SFD5
Color: Tropical Mix
Version: SFX5 ( X Type) / SFD5 ( Deadcat Type)

Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness:5mm
Side plate thickness:2mm
CNC Side plate thickness:5mm
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm

Version SFX5
Wheelbase 225mm
Weight 177.4g(with TPU parts)
Total Dimensions 177x140mm

Version SFD5
Wheelbase 225mm
Weight 186.4g(with TPU parts)
Total Dimensions 190x136mm

Propeller size: recommend 5 Inch – 5.1 Inch
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)

Recommend Parts: ( NOT Included)
FC & ESC: 30.5×30.5mm
Brushless Motor: DYS SUNFUN V2 2207 1850KV 6S / 2750KV 4S Motor
DYS SUNFUN V2 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor
Propeller: 6 Pairs 5.1Inch 3-Blade 5mm Hole Propeller
VTX & Camera: DJI O3 Air Unit
Lipo Battery: ZOP Power 22.2V 1500mAh 100C 6S LiPo Battery XT60 Plug

Package Included:
1x Frame Kit
