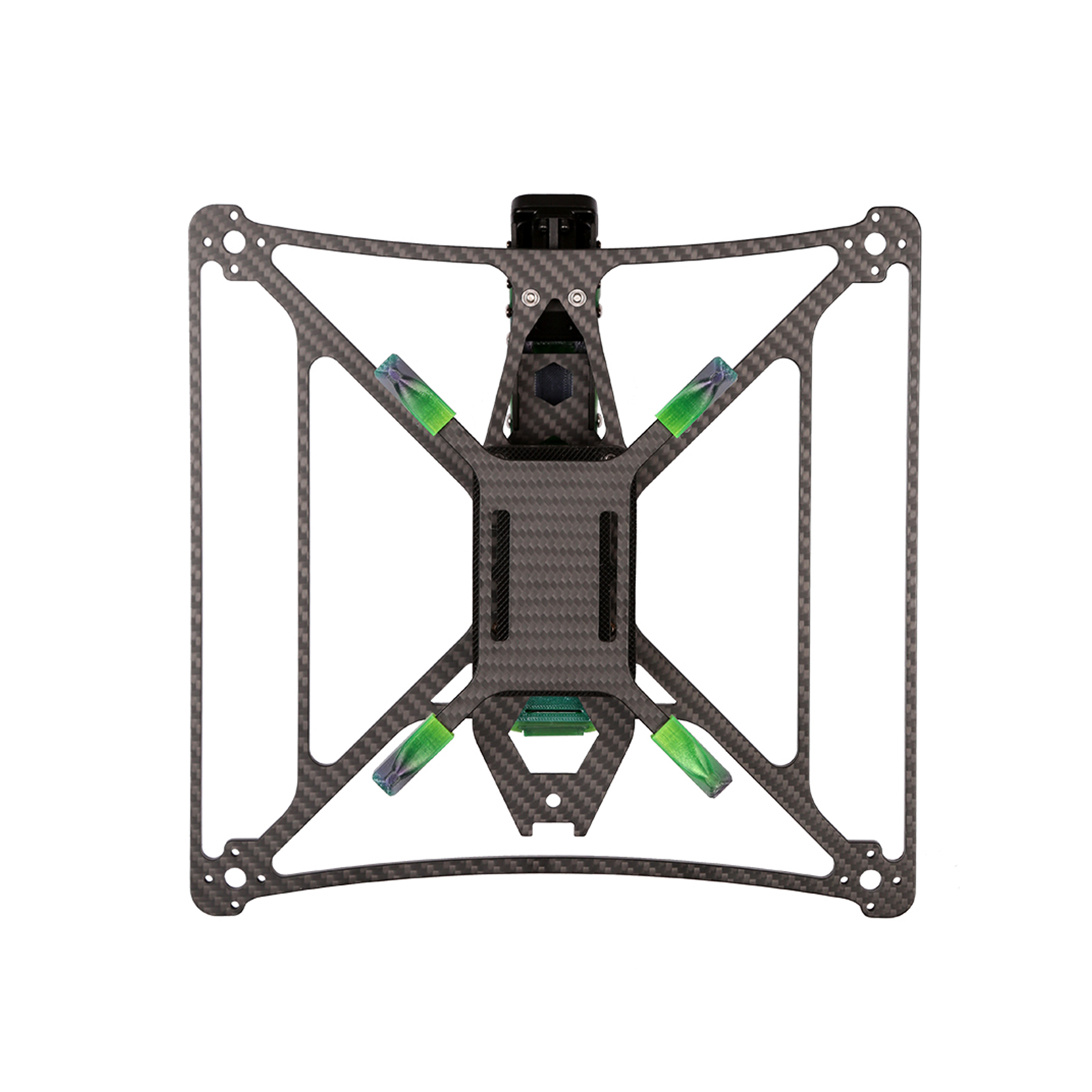

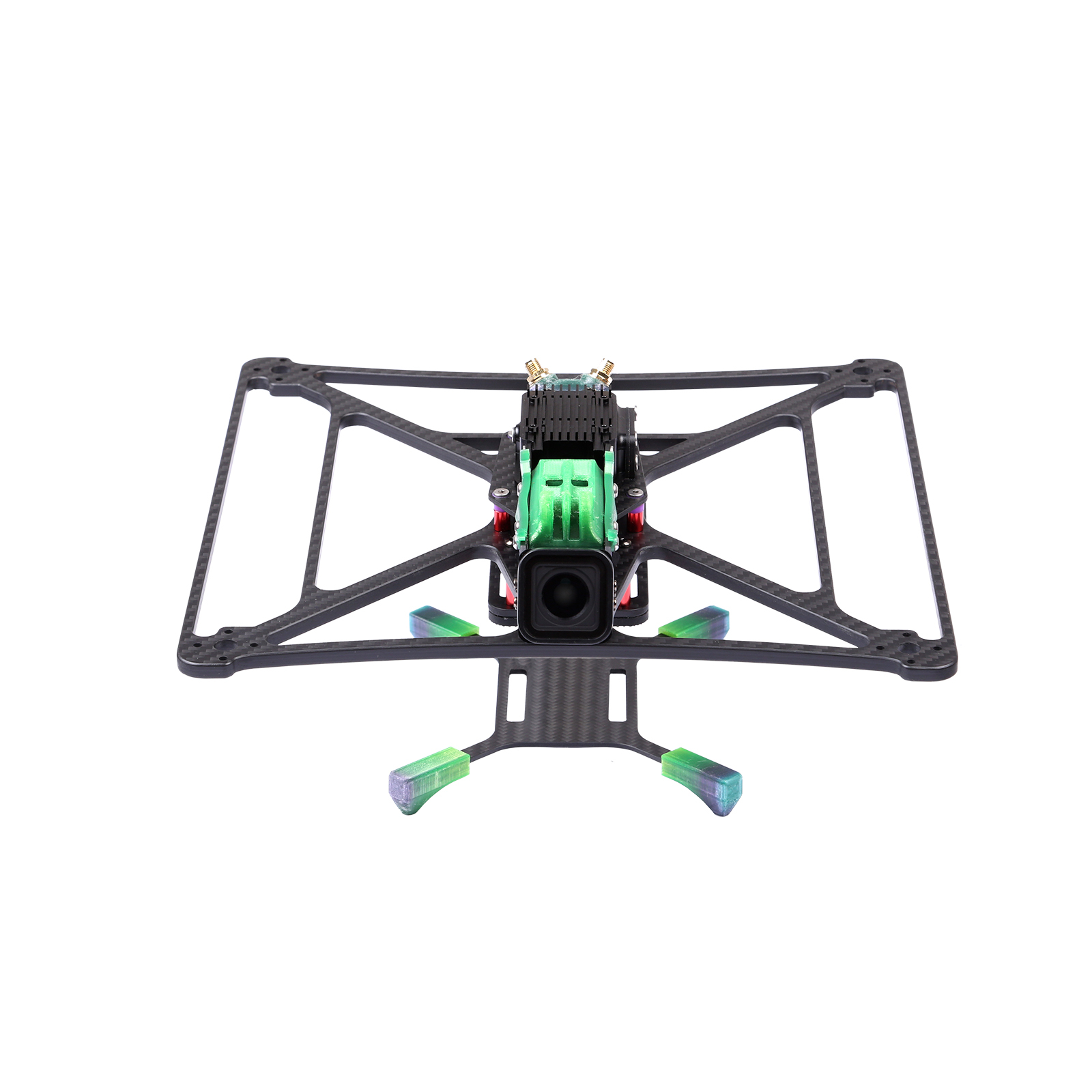

DYS Osprey SX7V1 Waterproof Long Range FPV Drone Frame

DYS Osprey SX7V1 is a type drone with 7 inch waterproof longrange frame, made in super-stiff carbon fibre for minimum resonance, and recommended 2807 motors for maximum 7″ prop control.

The most advantage is excellent IP67 waterproof rating, enables users to capture stunning moments in water environments, including seawater, with complete peace of mind.

Fly bigger batteries bottom-mounted, 6 cells or 5 cells recommended for slow cruising. Whatever style you fly, a Lipo or Lion pack will do the job.

Optional Parts（excluded in the frame kit）

FC and ESC：DYS F722+65A 30.5×30.5mm

Brushless Motor：DYS X2807 1300kv 6S motor

Propeller：2 pairs of 7″ 3-blade propellers with 5mm hole

VTX and Camera：DJI O3 Air Unit

Li-ion Battery：ZOP Power 22.2V  3000-6000mAh 75C-100C 6S li-ion battery XT60 connector

SX7V1 Edition

Wheelbase: 327mm

Weight: 380g（include TPU part）

Dimention: 255x262mm

Propeller Size: Recommended 7″

Stack Mount Hole：30.5mm*30.5mm（M3）

VTX Mount Hole：25.5mm*25.5mm（M1.6）

Specifications

Product name：Osprey SX7V1 Frame Kit

Wheelbase：327mm

Frame Dimention：L255*W262*H90mm

Frame Body Dimention：34mm

Arm Thickness：6mm

Bottom Plate Thickness：3mm

Top Plate Thickness：2mm

Upper Plate Thickness：2mm

Camera Plate Thickness：2mm

Motor Mounting：19x19mm

VTX Mounting：25*25φmm

Weight：332g（exclude TPU part）

Note: Due to the manufacturing processes, the thickness of our products many have a standard manufacturing tolerance of ±0.2mm. The size of the holes may have a standard manufacturing tolerance of ±0.1mm.

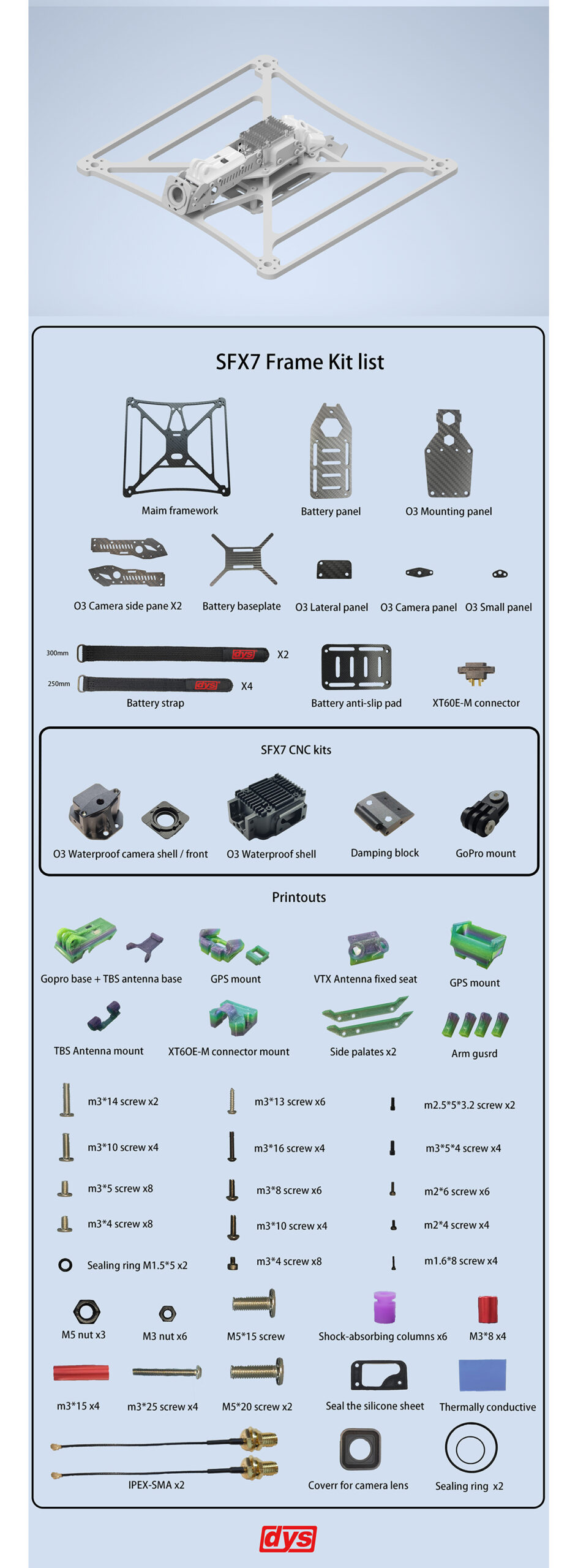

Packing List

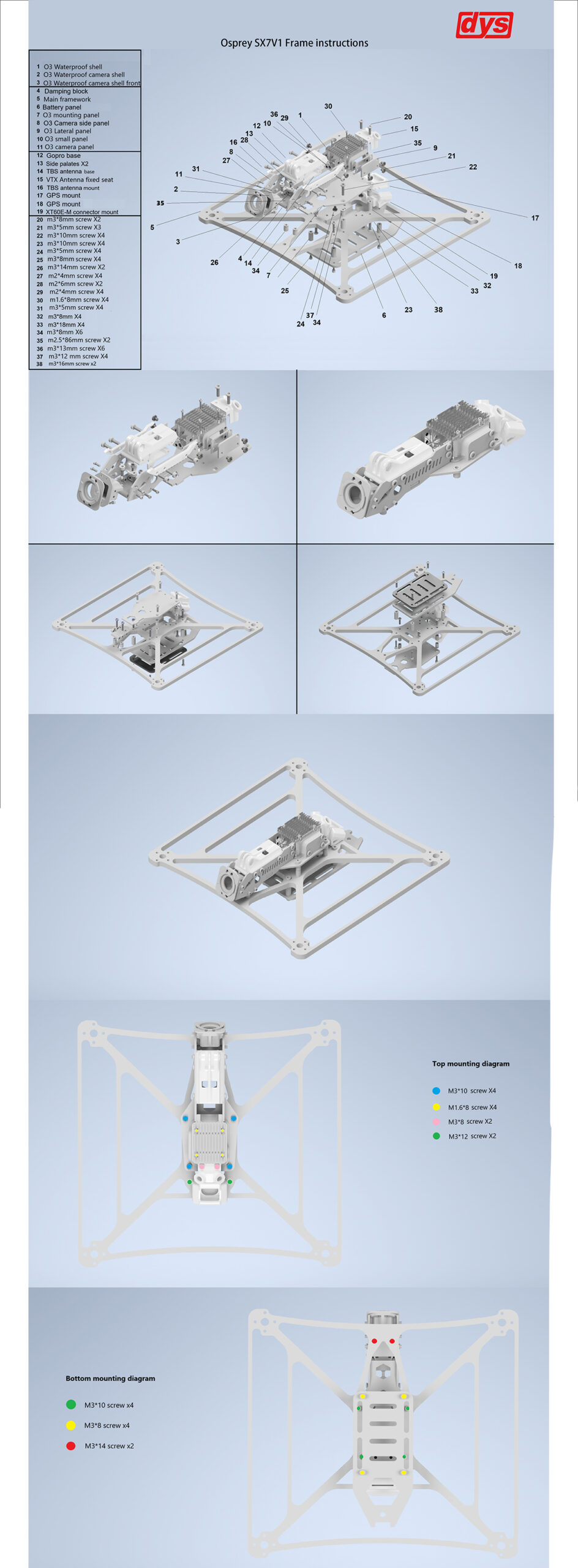

Osprey SX7V1 Frame Manual

1x Osprey SX7V1 Main Frame

1x Osprey SX7V1 Frame Kit (8PCS)

1x O3 Air Unit Waterproof Heat Sink CNC Kit（5PCS）

1x TPU Print Kit (14PCS）

1x Screw, Spare Parts Bag（23PCS）

1x L-type Hexagonal Spanner（4PCS）

2x Battery Strap（20*300mm）

4x Battery Strap（20*250mm）
