Features:

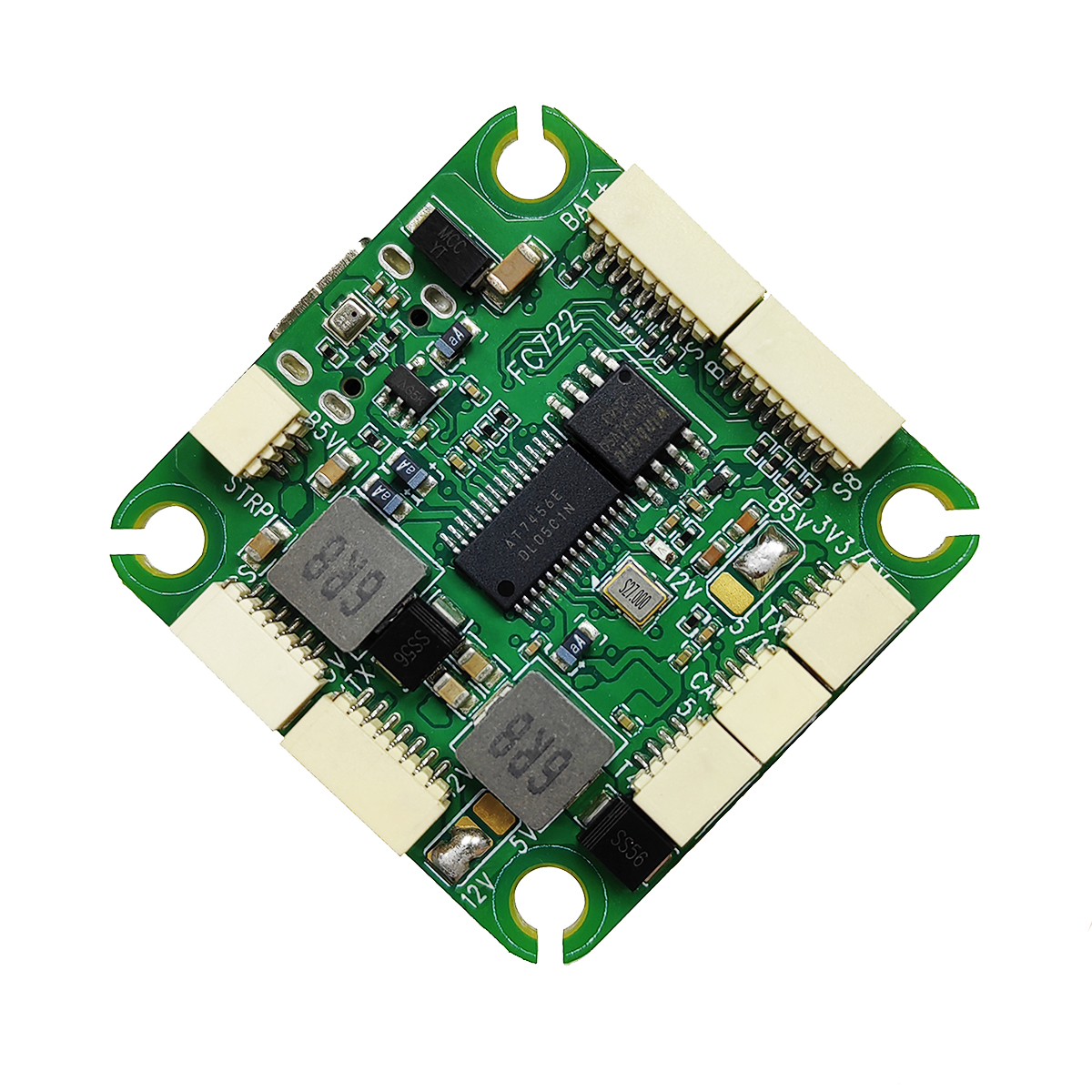

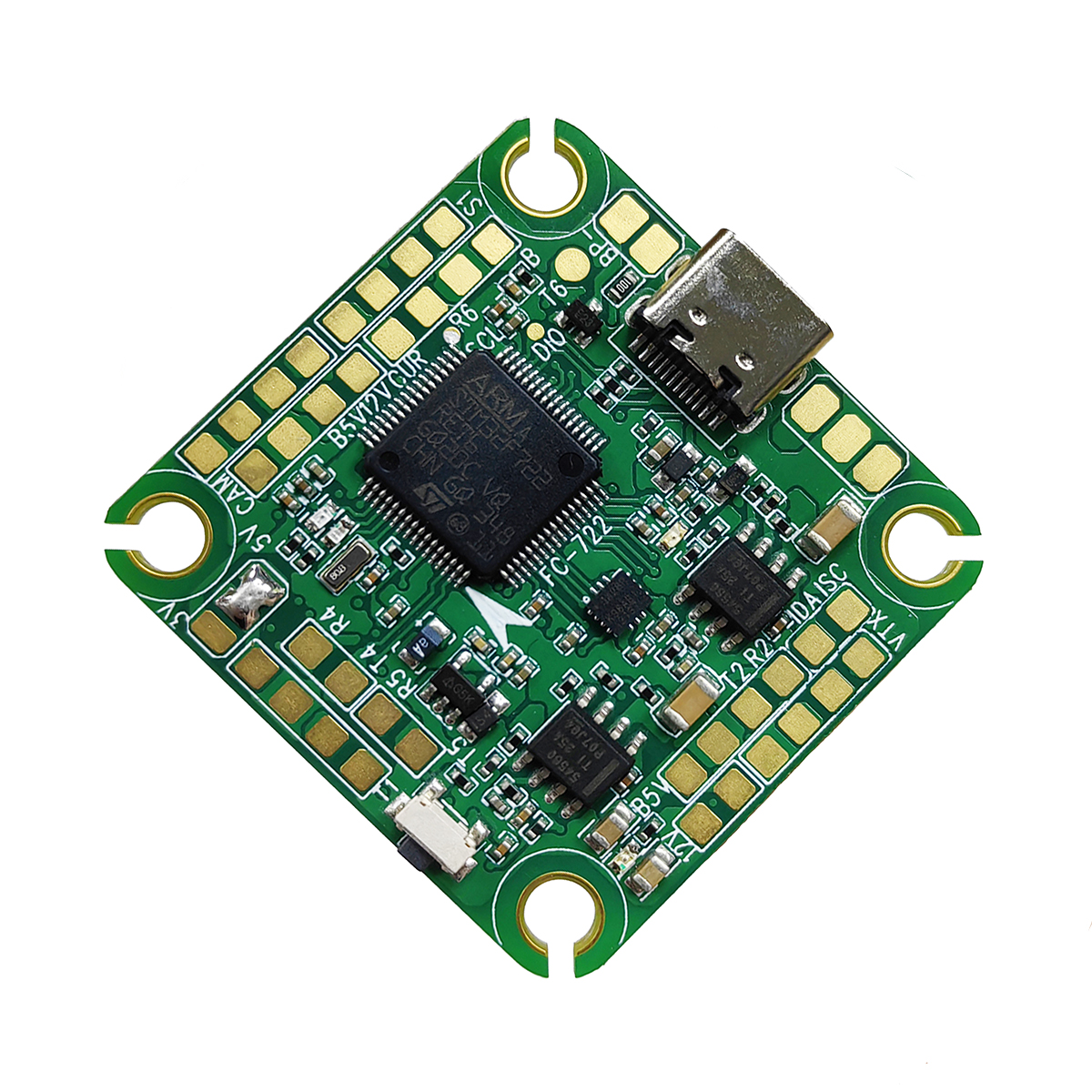

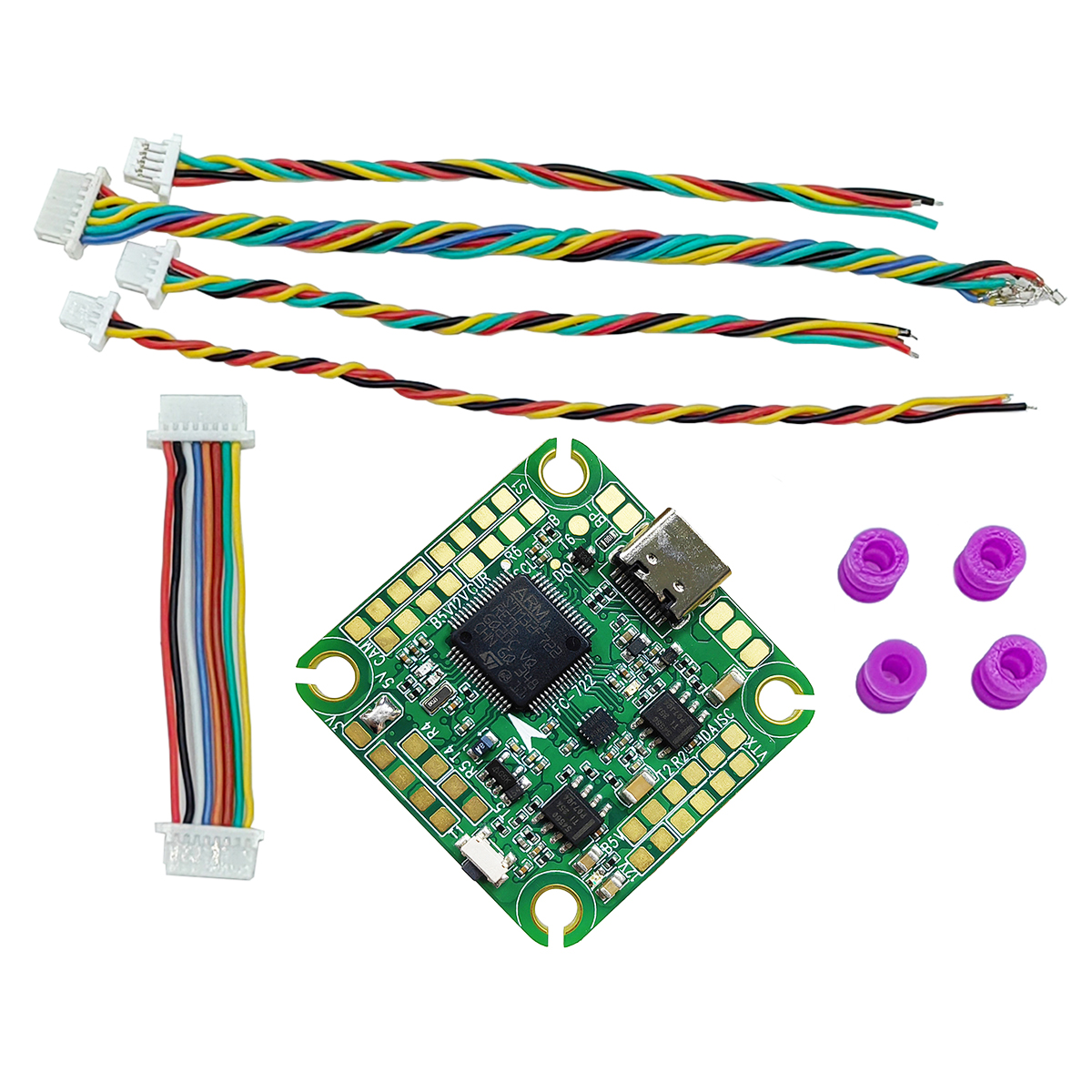

FC STM32 FC722 Flight Controller
Top Features:
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
With LC filter
Specifications:
MCU: STM32 FC722
Gyro: ICM42688P
Barometer: BMP280
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6Prot
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: BETAFLIGHT
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 38*38 mm
Weight: 10.0g
BEC: 3.3V/1A; 5V/3A; 12V/3A
Wiring suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
Tips
1. FC722 MCU has an inner inverter.
2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX，we suggest you connect to Uart_RX2
3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2
